CHX2090-QDG - 12-24GHz Frequency Multiplier
Input Power (dBm)
14
Output Power (dBm)
12
26
Bias (mA)
65
Bias (V)
3.5
Input Bandwidth (GHz)
11
Output Bandwidth (GHz)
22
Xn
X2
Market
23-26GHz Chipset
The CHX2090-QDG is a cascadable frequency doubler monolithic circuit, which integrate an output buffer amplifier that produces a constant output power over a range of input powers.
It is designed for a wide range of applications, from military to commercial communication systems.
The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.

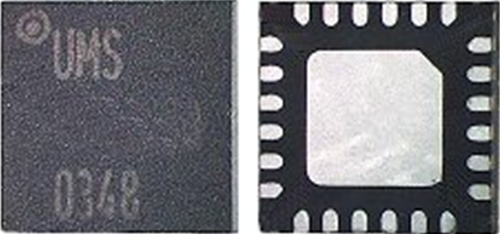

It is supplied in RoHS compliant SMD package.
