CHX2089-99F - 9-18GHz Frequency Multiplier
Input Power (dBm)
12
Output Power (dBm)
15
23
Bias (mA)
60
Bias (V)
3.5
Input Bandwidth (GHz)
8
Output Bandwidth (GHz)
16
Xn
X2
Market
13-18GHz & VSAT Ku Chipset

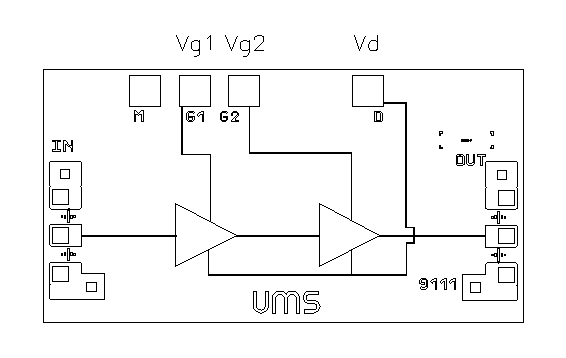

The CHX2089-99F is a cascadable times 2 frequency multiplier monolithic circuit.
It is designed for a wide range of applications, from ISM to commercial communication systems. The backside of the chip is both RF and DC grounds. This helps simplify the assembly process.
The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
