CHX1191-QDG - 13.5-40.5GHz Frequency Multiplier
Input Power (dBm)
1
Output Power (dBm)
6
43,5
Bias (mA)
80
Bias (V)
5
Input Bandwidth (GHz)
11
Output Bandwidth (GHz)
33
Xn
X3
Market
36-44GHz Chipset

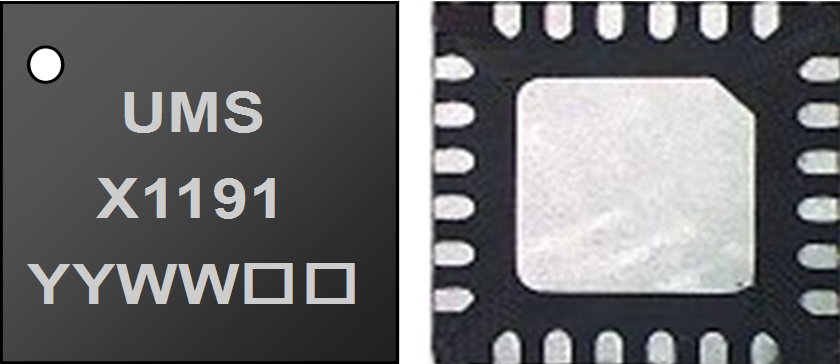

The CHX1191-QDG is a packaged monolithic time three multiplier which integrates input and output buffer.
This circuit is a very versatile multiplier for telecommunication and specifically for E-band LO chain. Moreover it is proposed in standard surface mount package and integrates ESD protection. The overall power supply is of +5V/ 80mA.
It is developed on a robust 0.15µm gate length pHEMT process, and will be available in a standard SMD package.
