CHX1162-QDG - 20-40GHz Frequency Multiplier

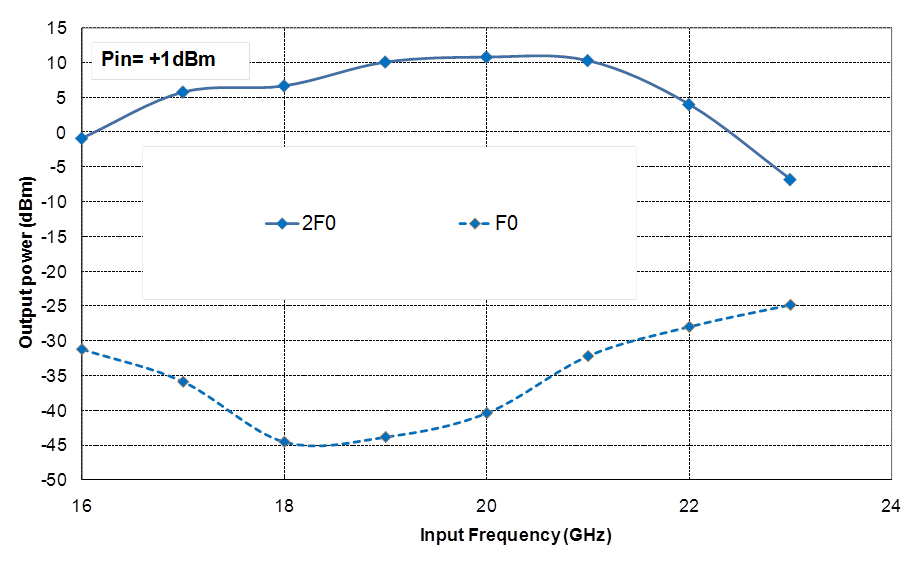

Input Power (dBm)
1
Output Power (dBm)
8
43
Bias (mA)
50
Bias (V)
5
Input Bandwidth (GHz)
17,5
Output Bandwidth (GHz)
35
Xn
X2
Market
36-44GHz Chipset
The CHX1162-QDG is a packaged monolithic time two multiplier which integrates input and output buffer.
This circuit is a very versatile multiplier for telecommunication and specifically for E band LO chain. Moreover it is proposed in standard surface mount package and integrates ESD protection. The overall power supply is of +5V/ 50mA.
It is developed on a robust 0.15µm gate length pHEMT process, and will be available in a standard SMD package.
