CHA8265-98F - 27.5-31GHz 25W High Power Amplifier
Gain (dB)
25
ACPR (dBc) @ (dBm)
-30
Bias (mA)
340
Bias (V)
25
PAE (%)
30
RF Bandwidth (GHz) Max
31
RF Bandwidth (GHz) Min
27.5
Market
28-32GHz & VSAT Ka Chipset

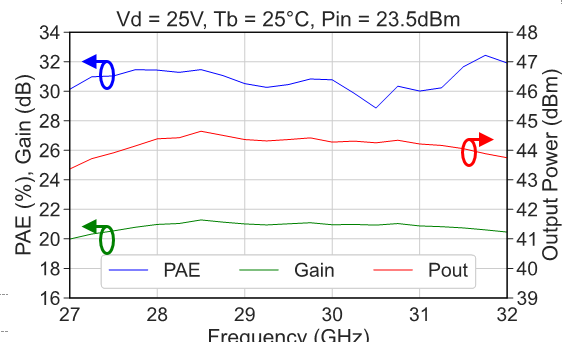

The CHA8265-98F is a 3-stage high power amplifier operating between 27.5 and 31GHz and providing typically 25W of saturated output power associated to 30% of Power Added Efficiency at 25V drain voltage. It exhibits 10W of linear power with -25dBc IMD3 and PAE better than 25%. This HPA is dedicated to SatCom and 5G applications and well suited for a wide range of microwave applications and systems. The circuit is manufactured on a robust GaN-on-SiC HEMT process and is available in bare die form. Input and output are 50Ω matched. The drain bias range, from 18V to 25V, offers a saturated output power from 15W to 25W.
