CHA5618-99F - 6-18GHz Power Amplifier
Gain (dB)
22
Sat. Output Power (dBm)
28
Bias (mA)
150
Bias (V)
20
IP3 (dBm)
-
P-1dB OUT (dBm)
-
RF Bandwidth (GHz) Max
18
RF Bandwidth (GHz) Min
6
Market
6-18GHz Chipset

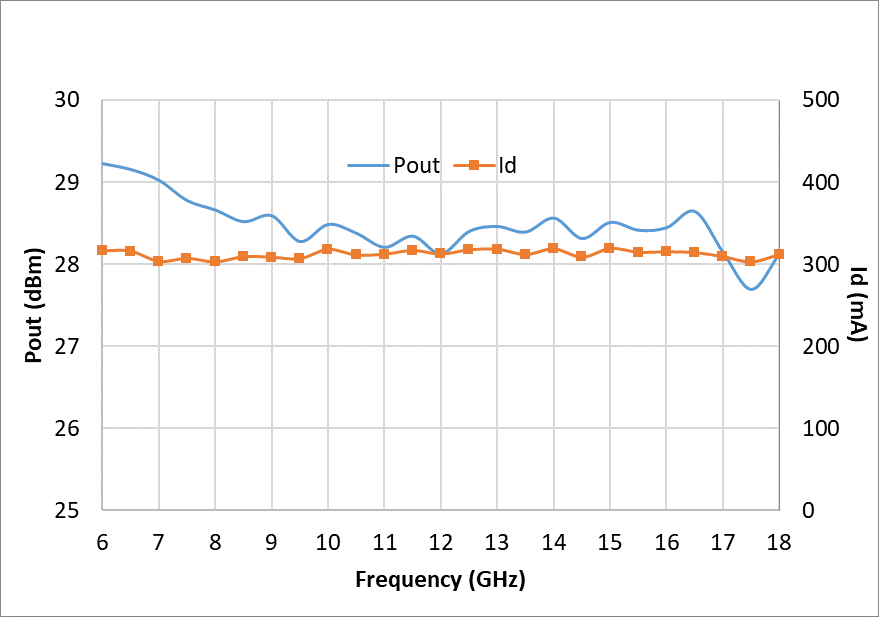

The CHA5618-99F is a monolithic GaN Driver Amplifier in the frequency band 6-18GHz with a control interface for speed switching. This driver provides 28dBm of Output Power. The circuit exhibits a small signal gain of 22dB. The overall power supply is of 20V/150mA (quiescent current).
It is designed for a wide range of applications, for military systems, such as electronic warfare, and test instrumentation.
The part is manufactured on robust GaN HEMT technology and is available as a bare die.
It is designed for a wide range of applications, for military systems, such as electronic warfare, and test instrumentation.
The part is manufactured on robust GaN HEMT technology and is available as a bare die.
