CHA4314-98F - 4.7-11.3GHz Medium Power Amplifer

Gain (dB)

Sat. Output Power (dBm)

Bias (mA)

180

Bias (V)

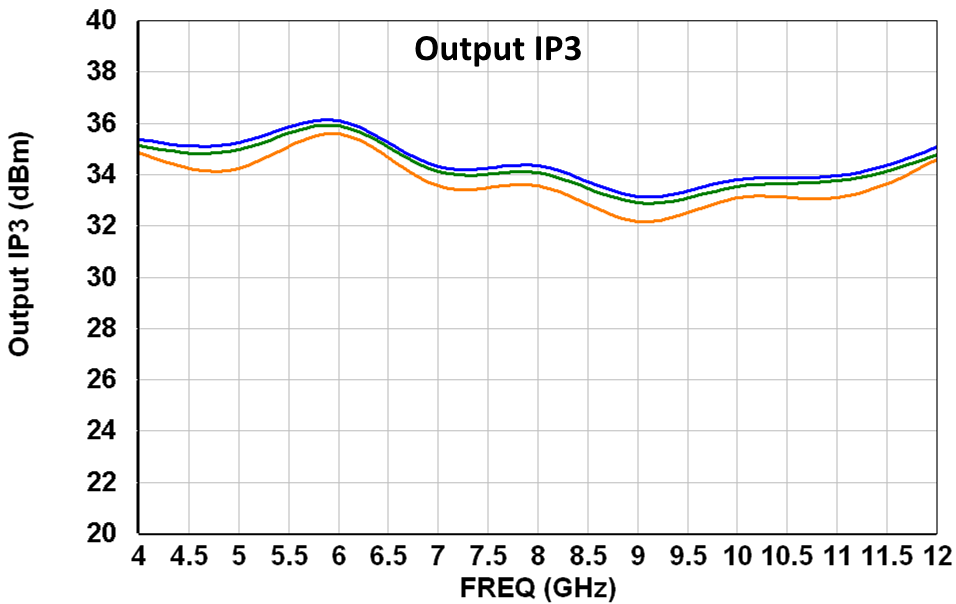

IP3 (dBm)

P-1dB OUT (dBm)

RF Bandwidth (GHz) Max

11.3

RF Bandwidth (GHz) Min

4.7

Market

Aerospace, Defense and Instrumentation

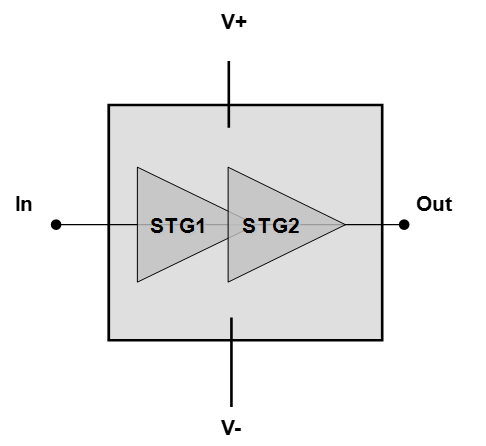

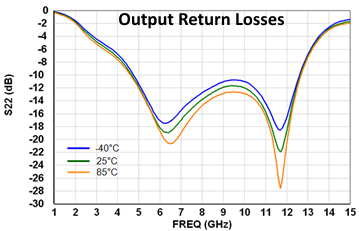

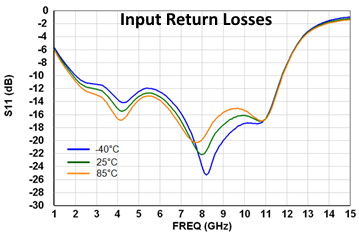

The CHA4314-98F is a two stage monolithic Medium Power Amplifier circuit. It is designed for a wide range of applications: Radar, electronic Warfare, PtP radios, Test & Measurement and General communication. The circuit is manufactured with a pHEMT process, 0.15µm gate length, via holes through the substrate, air bridges and electron beam gate lithography. It is available in chip form.
