CHA3396-QDG - 27-33.5GHz Medium Power Amplifier
Gain (dB)
22
Gain Control Range (dB)
15
Gain Flatness (+/-dB)
1.5
Bias (mA)
155
Bias (V)
4
Noise Figure (dB)
4.5

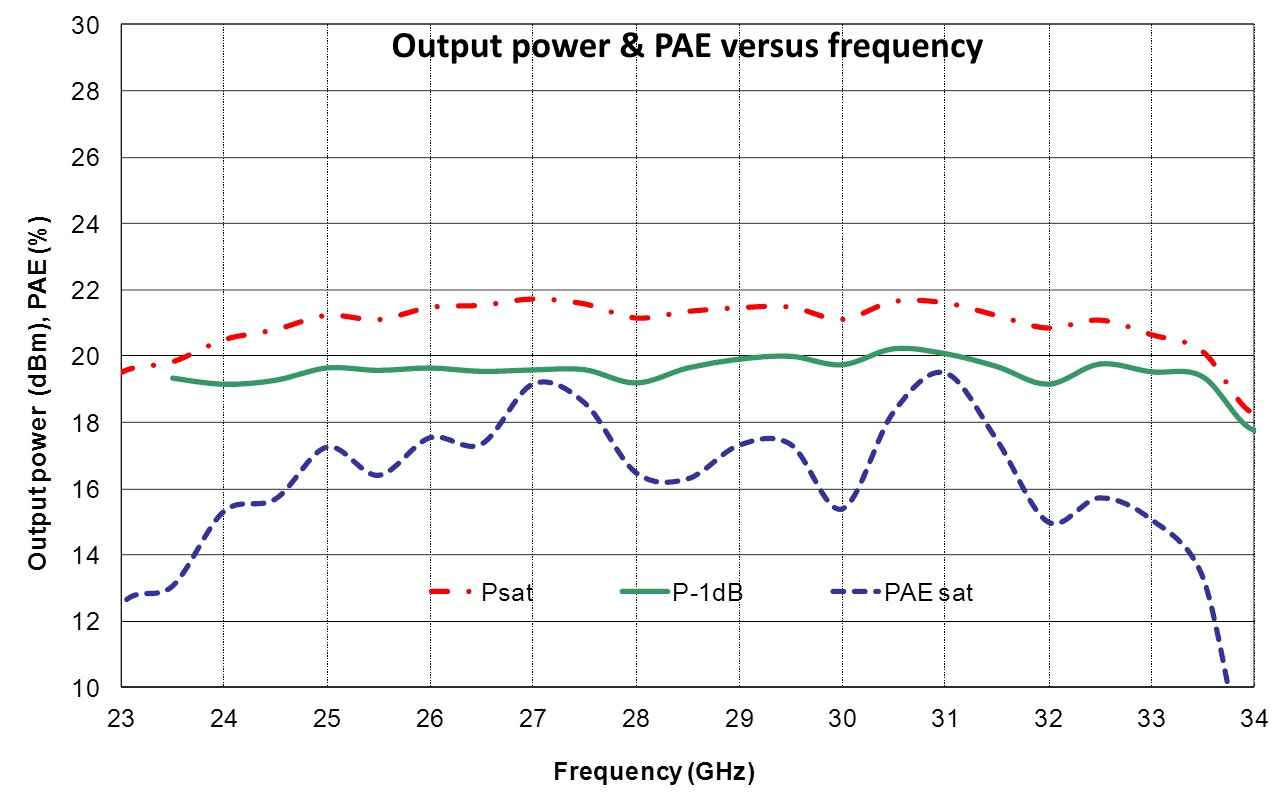

P-1dB OUT (dBm)
19
RF Bandwidth (GHz) Max
33.5
RF Bandwidth (GHz) Min
27
Market
28-32GHz & VSAT Ka Chipset
The CHA3396-QDG is a 3 stage monolithic Medium Power Amplifier which produces 22dB gain for 19dBm output power.
It is designed for a wide range of applications, from military to commercial communication systems.
The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
It is supplied in RoHS compliant SMD package.
