CHS5104-FAB - DC-6GHz reflective SPDT
Isolation (dB)
30
Loss (dB)
1
P-1dB IN (dBm)
30
RF Bandwidth (GHz) Max
6
RF Bandwidth (GHz) Min
DC
Type
reflective
Market
Aerospace, Defense and Instrumentation

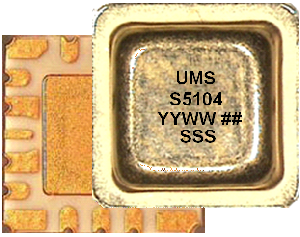

The CHS5104-FAB is a monolithic FET based reflective switch housed in leadless surface mount hermetic metal ceramic 6x6mm² package.
It is designed for a wide range of applications, from space and military to commercial communication systems.
The circuit is manufactured with a pHEMT process, 0.25µm gate length.
It is supplied in RoHS compliant SMD package.
