CHR3762-QDG - 5.5-9GHz Integrated Down Converter

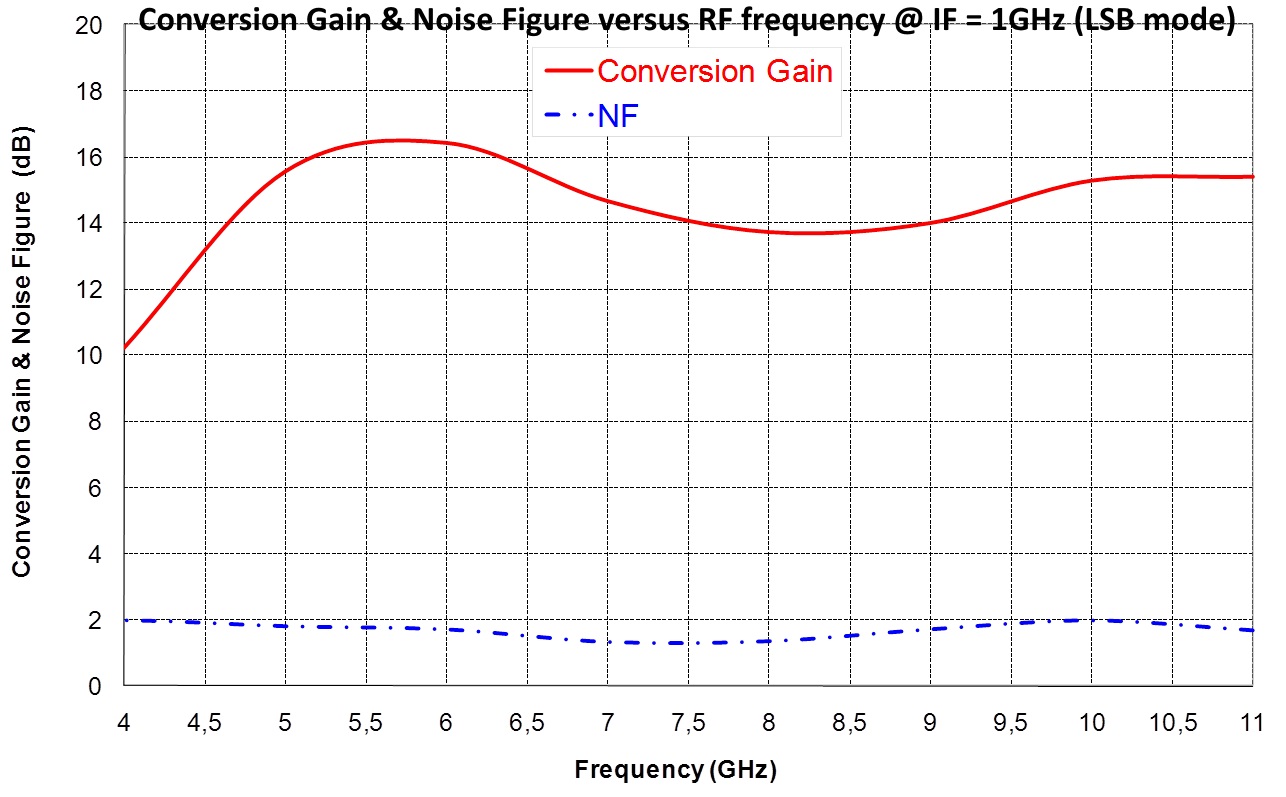

Conv. Gain (dB)
14
LO Input Power (dBm)
5
Bias (mA)
100
Bias (V)
3
IF Bandwidth (GHz)
DC-3.5
LO Bandwidth (GHz)
4-12
Noise Figure (dB)
1.7
P-1dB IN (dBm)
-5
RF Bandwidth (GHz) Max
9
RF Bandwidth (GHz) Min
5.5
Market
6-8.5GHz Chipset
The CHR3762-QDG is a multifunction monolithic receiver, which integrates a balanced cold FET mixer, a LO buffer, and a RF low noise amplifier.
It is designed for a wide range of applications, from military to commercial communication systems.
The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
It is supplied in RoHS compliant SMD package.
