CHR3663-QEG - 17-24GHz Integrated Down Converter

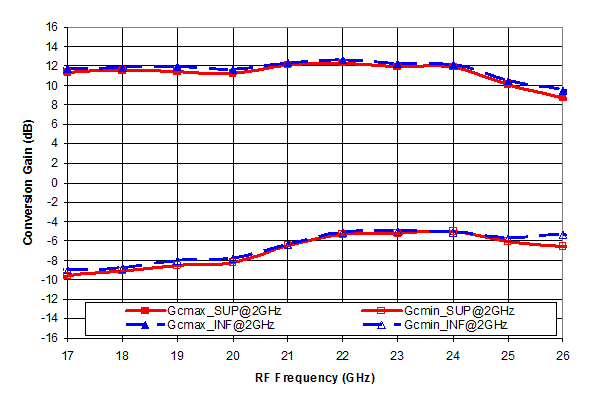

Conv. Gain (dB)
11
Bias (mA)
380
Bias (V)
4.5
IF Bandwidth (GHz)
DC-3.5
LO Bandwidth (GHz)
7-14
Noise Figure (dB)
3.5
P-1dB IN (dBm)
-5
RF Bandwidth (GHz) Max
24
RF Bandwidth (GHz) Min
17
The CHR3663-QEG is a multifunction part, which integrates a balanced cold FET mixer, a multiplier by two, and a RF LNA including gain control.
It is designed for a wide range of applications, typically commercial communication systems and ISM.
The circuit is manufactured with a robust high volume pHEMT process, 0.25µm gate length.
It is available in lead-free SMD package.
