CHR3662-QDG - 7-16GHz Integrated Down Converter

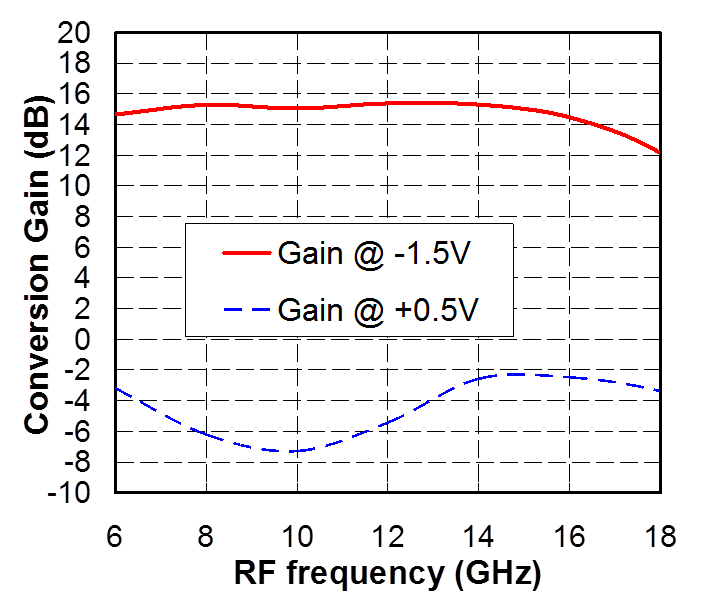

Conv. Gain (dB)
13
Bias (mA)
280
Bias (V)
4.5
IF Bandwidth (GHz)
DC-3.5
LO Bandwidth (GHz)
4.5-19.5
Noise Figure (dB)
3
P-1dB IN (dBm)
-8
RF Bandwidth (GHz) Max
16
RF Bandwidth (GHz) Min
7
Market
13-18GHz & VSAT Ku Chipset
The CHR3662-QDG is a multifunction part, which integrates a balanced cold FET mixer, a LO buffer, and a RF LNA including gain control.
It is designed for a wide range of applications, typically commercial communication systems.
The circuit is manufactured with a pHEMT process 0.25µm.
It is available in lead-free SMD package.
