CHR3352-QEG - 12-16GHz Integrated Down Converter

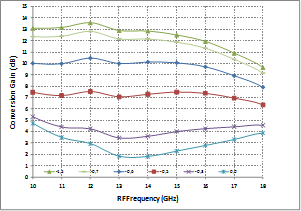

Conv. Gain (dB)
13
Bias (mA)
250
Bias (V)
4
IF Bandwidth (GHz)
DC-3.5
LO Bandwidth (GHz)
8.5-19.5
Noise Figure (dB)
2.7
P-1dB IN (dBm)
-6
RF Bandwidth (GHz) Max
16
RF Bandwidth (GHz) Min
12
Market
13-18GHz & VSAT Ku Chipset
The CHR3352-QEG is a multifunction monolithic circuit, which integrates a balanced cold FET mixer, a LO buffer and a RF LNA including gain control.
It is designed for a wide range of applications, typically ISM and commercial communication systems.
The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.

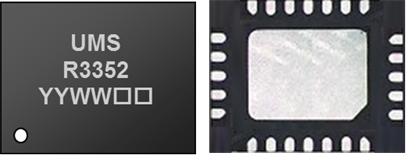

It is supplied in RoHS compliant SMD package.
