CHR2411-QDG - 22-24.5GHz RX Multifunction
Conv. Gain (dB)
23
LO Input Power (dBm)
5
Bias (mA)
60
Bias (V)
5
IF Bandwidth (GHz)
DC-0.001
LO Bandwidth (GHz)
22-24.5
Noise Figure (dB)
7
P-1dB IN (dBm)
-21
RF Bandwidth (GHz) Max
24.5
RF Bandwidth (GHz) Min
22
Market
Automotive

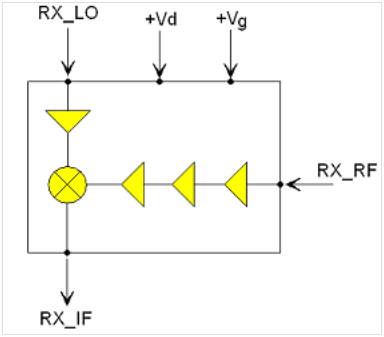

The CHR2411-QDG is a monolithic multifunction in K-Band which integrates a Low Noise Amplifier and a mixer generating an IF signal from DC to 1MHz. All the active devices are self biased on chip.
The circuit is manufactured with a standard GaAs pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
It is available in a 24 leads RoHS compliant QFN4x4 package.
