CHP4014-QEG - 5-6GHz 6 bit Phase Shifter
Insertion Loss (dB)
6
Control Voltage
0/3.3 or 5
Number of Bits
6
P-1dB IN (dBm)
26

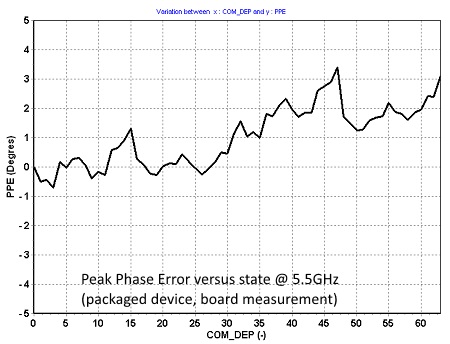

Phase Error (°p-p)
4
Phase range (°)
360
RF Bandwidth (GHz) Max
6
RF Bandwidth (GHz) Min
5
Market
Aerospace, Defense and Instrumentation
The CHP4014-QEG is a 6-bit digital phase shifter MMIC with a 0°-360° range. It is designed for 5 to 6GHz frequency range applications.
The circuit supports a variety of C-band phased array applications including industrial sensors and military radars.
The circuit is manufactured with a Power pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
It is available in lead-free SMD package.
