CHA7063-QCB - 12.7-20GHz 5W Power Amplifier
Gain (dB)
20
Sat. Output Power (dBm)
37
Bias (mA)
216
Bias (V)
20
IP3 (dBm)
ACPR:33dBc@30dBm Pout 200MHz/256QAM
PAE (%)
17 @ Psat
RF Bandwidth (GHz) Max
20
RF Bandwidth (GHz) Min
12.7
Market
13-18GHz & VSAT Ku Chipset
The CHA7063-QCB is a GaN packaged monolithic Power Amplifier operating between 12.7 and 20GHz and providing typically 5W of saturated output power associated with 17% of Power Added Efficiency. The amplifier exhibits a typical linear gain of 20dB at a DC power supply of 20V/216mA.
It is dedicated to a wide range of applications, such as Point To Point Radio and VSAT applications.

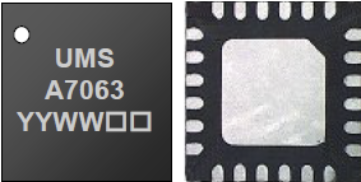

The circuit is manufactured on a robust GaN-on-SiC HEMT process and is available in a standard surface mount 28 leads QFN 5x5 plastic package compliant with the standards such as the directives RoHS N°2011/65 and REACh N°1907/2006. The input and output are internally matched to 50Ω and integrate ESD RF protection.
It is dedicated to a wide range of applications, such as Point To Point Radio and VSAT applications.
The circuit is manufactured on a robust GaN-on-SiC HEMT process and is available in a standard surface mount 28 leads QFN 5x5 plastic package compliant with the standards such as the directives RoHS N°2011/65 and REACh N°1907/2006. The input and output are internally matched to 50Ω and integrate ESD RF protection.
