CHA6550-98F - 17-23.6GHz Power Amplifier

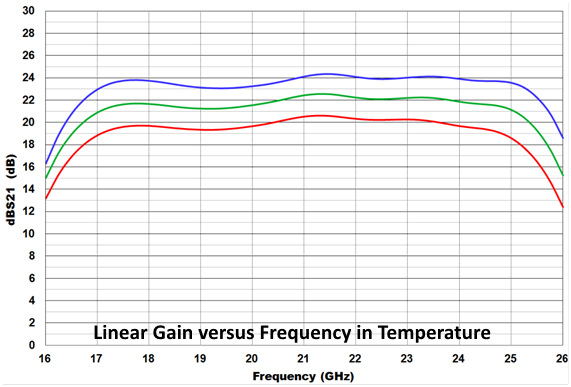

Gain (dB)
22
Sat. Output Power (dBm)
34
Bias (mA)
1300
Bias (V)
6

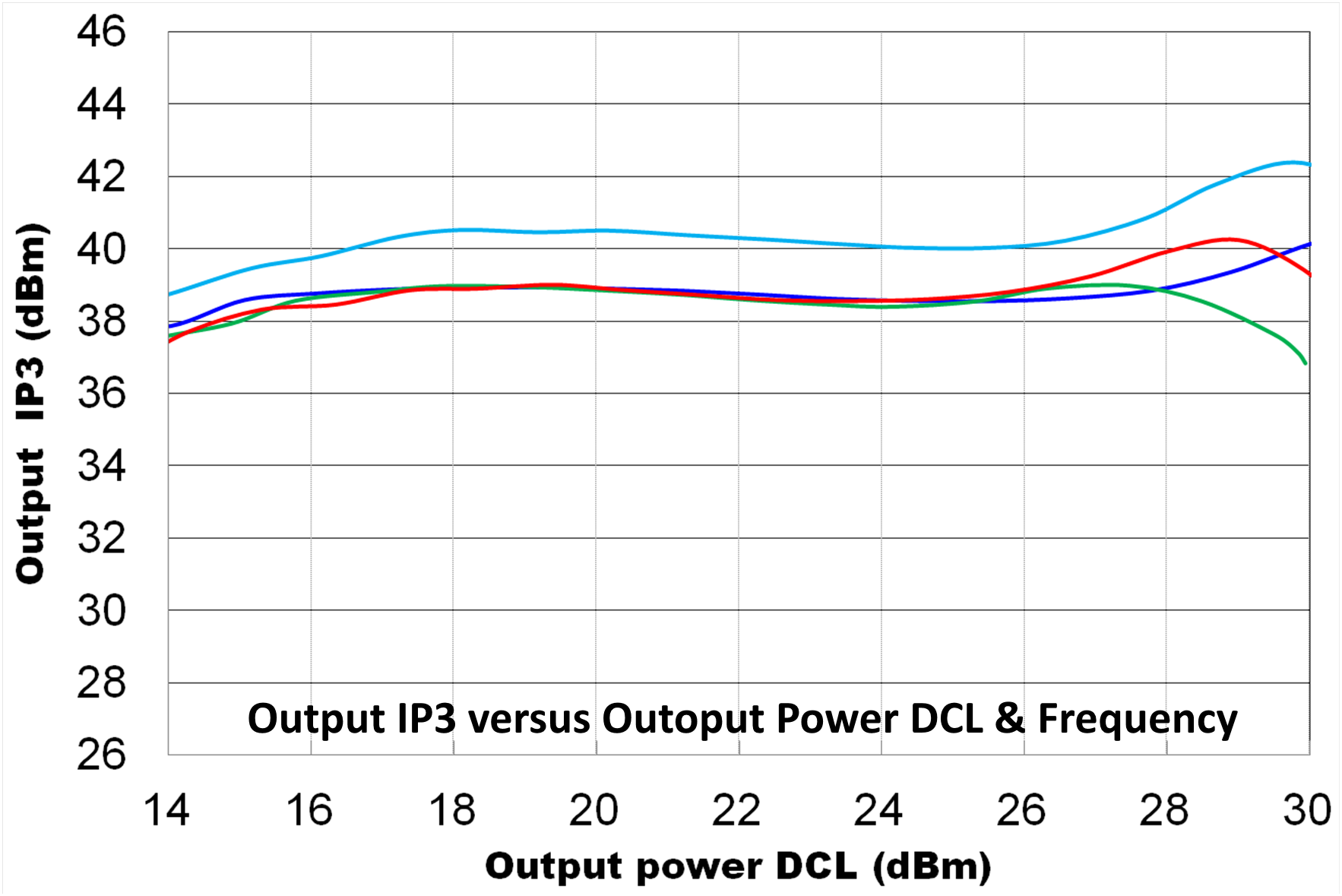

IP3 (dBm)
39
P-1dB OUT (dBm)
33.5
PAE (%)
20 @ Psat
RF Bandwidth (GHz) Max
23.6
RF Bandwidth (GHz) Min
17
Market
13-18GHz & VSAT Ku Chipset
The CHA6550-98F is a three stage monolithic GaAs high power amplifier circuit, which integrates differential mode power detector at the output. Gain control up to 15dB is achievable thanks to gate voltage.
It is a field proven solution for Point to Point telecommunication systems, also suitable for other applications such as SATCOM. The circuit is highly linear and compatible with the last generation of Digital Pre-Distortion. Its versatile biasing condition helps to tune the performances.
The circuit is manufactured with a pHEMT space evaluated process, 0.15µm gate length.
