CHA6354-QQA - 27.5-30GHz 4W HPA with SPDT
Gain (dB)
25
Sat. Output Power (dBm)
36
Bias (mA)
120
Bias (V)
25
IP3 (dBm)
ACPR:-34dBc@33dBm Pout 30MHz/8PSK
PAE (%)
16 @ Psat
RF Bandwidth (GHz) Max
30
RF Bandwidth (GHz) Min
27.5
Market
28-32GHz & VSAT Ka Chipset
The CHA6354-QQA is a three stage monolithic GaN High Power Amplifier reaching 4W output power over 27.5-30GHz bandwidth. It includes a SPDT switch at the output.
The CHA6354-QQA provides high linearity with low consumption.
It is well suited for SatCom uplink and 5G communication applications.
The circuit is manufactured on a robust GaN-on-SiC HEMT technology. The input and output are internally matched to 50Ohms and integrate ESD RF protection.

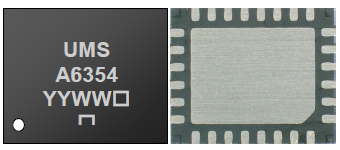

It is available in standard surface mount 28 Leads QFN 5x4. It is supplied in RoHS compliant SMD package.
The CHA6354-QQA provides high linearity with low consumption.
It is well suited for SatCom uplink and 5G communication applications.
The circuit is manufactured on a robust GaN-on-SiC HEMT technology. The input and output are internally matched to 50Ohms and integrate ESD RF protection.
It is available in standard surface mount 28 Leads QFN 5x4. It is supplied in RoHS compliant SMD package.
