CHA6262-99F - 17.3-21.5GHz 4W GaN Power Amplifier
Gain (dB)
30
Sat. Output Power (dBm)
36
Bias (mA)
260
Bias (V)
18
IP3 (dBm)
-
P-1dB OUT (dBm)
33
PAE (%)
36 @ Psat
RF Bandwidth (GHz) Min
17.3
RF Bandwidth (GHz) Max
21.5
Market
13-18GHz & VSAT Ku Chipset

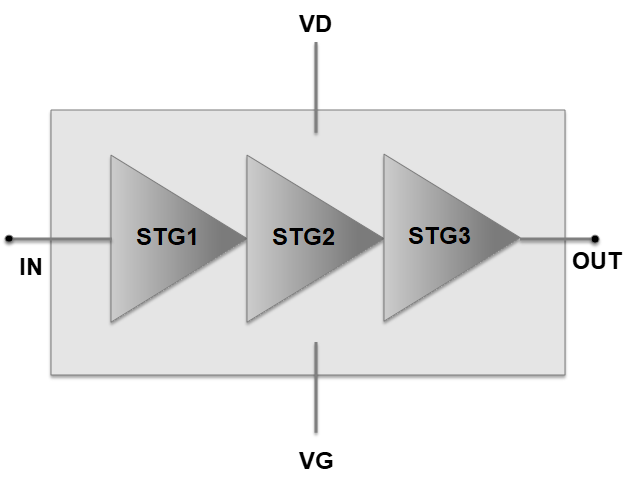

The CHA6262-99F is a three-stage GaN High Power Amplifier operating in the frequency band 17.3-21.5GHz. This HPA typically provides 4W output power associated to 36% of Power Added Efficiency. The circuit exhibits a typical small signal gain of 30dB. The overall power supply is 18V/182mA.
This HPA is dedicated to Space applications and well suited for a wide range of microwave applications and systems.
The product is developed on a robust 0.15µm gate length GaN on SiC HEMT process and is available as a bare die.
