CHA6194-QXG - 37-40GHz Power Amplifier
Gain (dB)
20

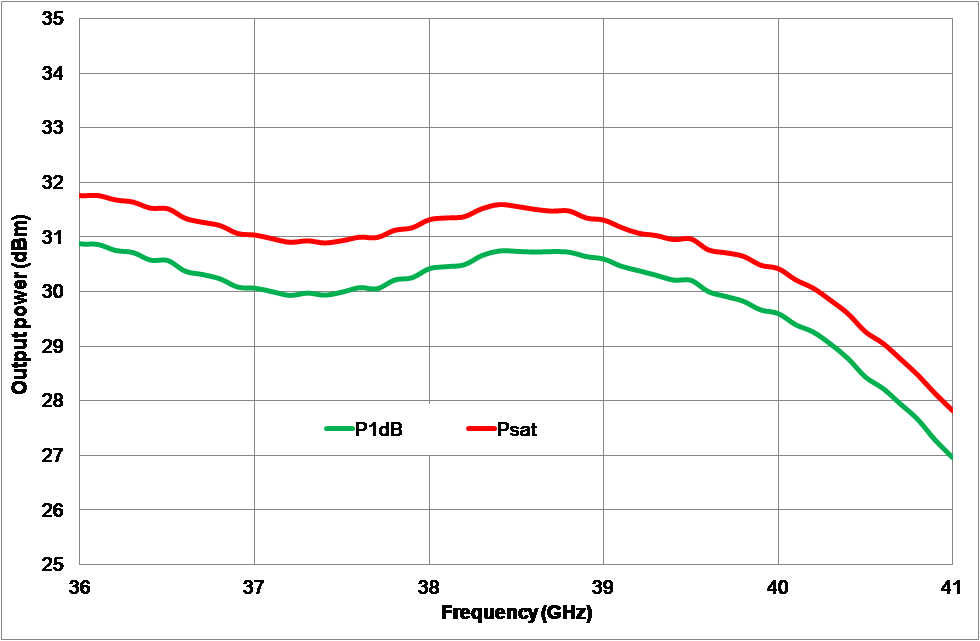

Sat. Output Power (dBm)
31
Bias (mA)
800
Bias (V)
6
IP3 (dBm)
38
P-1dB OUT (dBm)
31
RF Bandwidth (GHz) Max
40
RF Bandwidth (GHz) Min
37
Market
36-44GHz Chipset
The CHA6194-QXG is a four stage monolithic GaAs high power circuit producing 1.2 Watt output power. It is highly linear, with possible gain control and integrates a power detector. ESD protections are included.
It is designed for Point To Point Radio or K band Sat-Com application.
The circuit is manufactured with a pHEMT process, 0.15µm gate length.

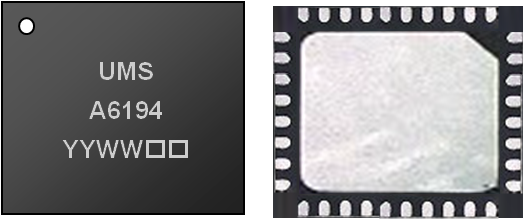

It is supplied in RoHS compliant SMD package.
