CHA6105-99F - 8-12GHz Driver Amplifier
Gain (dB)
30
Sat. Output Power (dBm)
31.5
Bias (mA)
700
Bias (V)
8
IP3 (dBm)
-
P-1dB OUT (dBm)
30.5
PAE (%)
-
RF Bandwidth (GHz) Max
12
RF Bandwidth (GHz) Min
8
The CHA6105-99F is a monolithic three-stage medium power amplifier designed for X band applications.

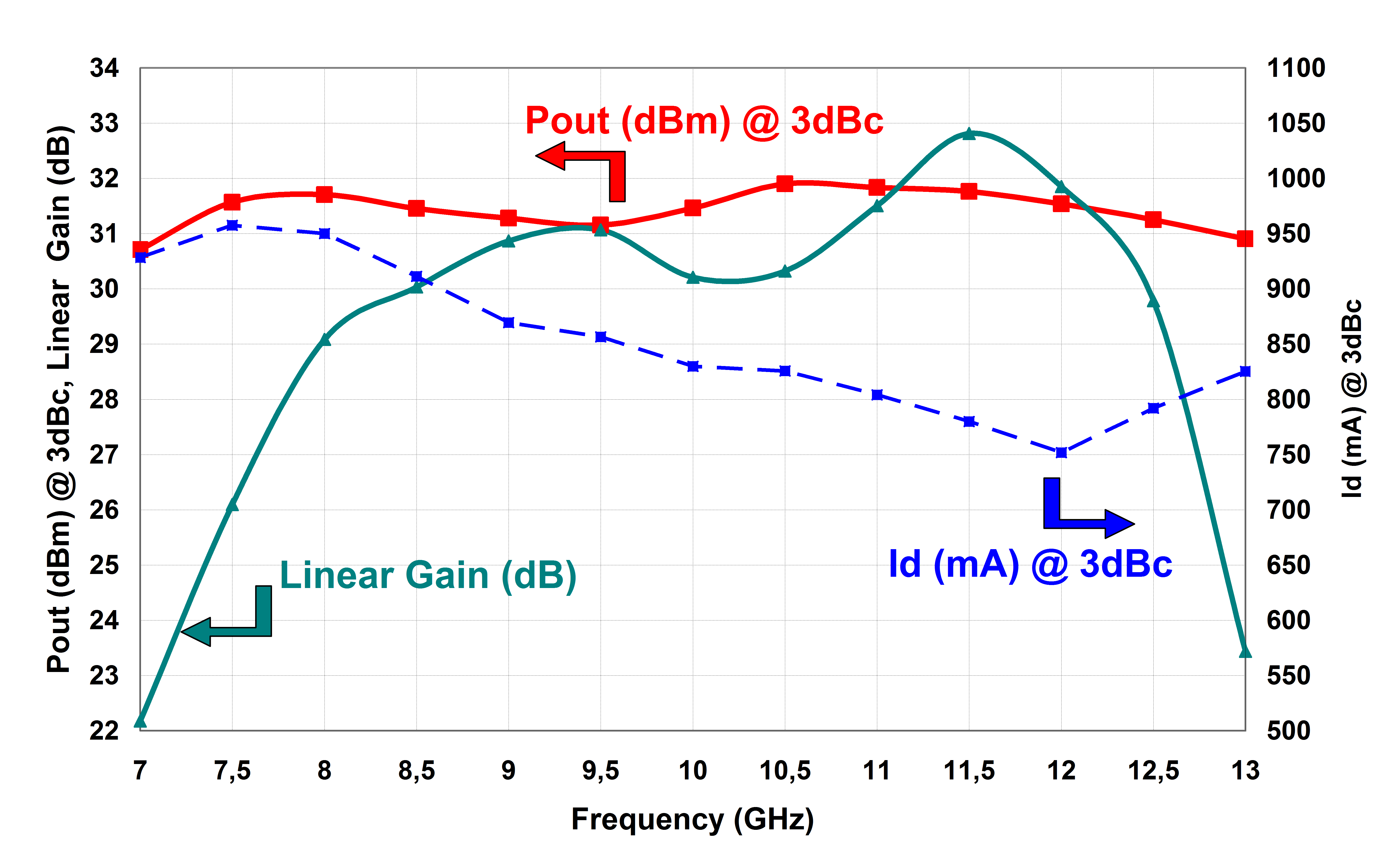

The driver provides typically 31.5dBm output power at saturation and is suitable for systems requiring a high compression level. Moreover it includes a biasing control circuit that makes Pout less sensitive to spread and chip environment.
The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
It is available in chip form.
