CHA6005-QEG - 8-12GHz HPA
Gain (dB)
19.5
Sat. Output Power (dBm)
32
Bias (mA)
420
Bias (V)
8
IP3 (dBm)
-
P-1dB OUT (dBm)
31.5
PAE (%)
35 @ 3dB comp
RF Bandwidth (GHz) Max
12
RF Bandwidth (GHz) Min
8
Market
Aerospace, Defense and Instrumentation
The CHA6005-QEG is a high power amplifier monolithic circuit which integrates two stages and produces 31.5dBm output power associated to a high power added efficiency of 33%. It is designed for a wide range of applications, from professional to commercial communication systems.
The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.

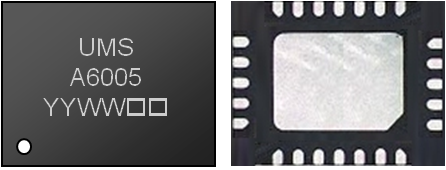

It is supplied in a RoHS compliant SMD package.
