CHA5659-QXG - 40-43.5GHz Power Amplifier
Gain (dB)
20

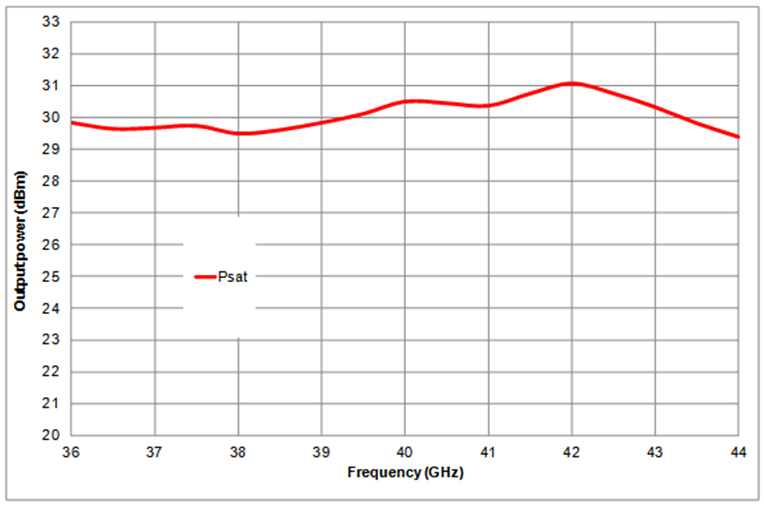

Sat. Output Power (dBm)
30
Bias (mA)
800
Bias (V)
6
IP3 (dBm)
38.5
P-1dB OUT (dBm)
29.5
RF Bandwidth (GHz) Max
43.5
RF Bandwidth (GHz) Min
40
Market
36-44GHz Chipset
The CHA5659-QXG is a four stage monolithic GaAs high power amplifier producing 1 Watt output power. It is highly linear, with possible gain control and integrates a power detector. ESD protections are included.
It is designed for Point To Point Radio or K‑band SatCom applications.
The CHA5659-QXG is recommended with the CHA3398-QDG as a driver.
The circuit is manufactured with a pHEMT process, 0.15µm gate length.
It is supplied in RoHS compliant SMD package.
