CHA5659-98F - 36-43.5GHz Power Amplifier

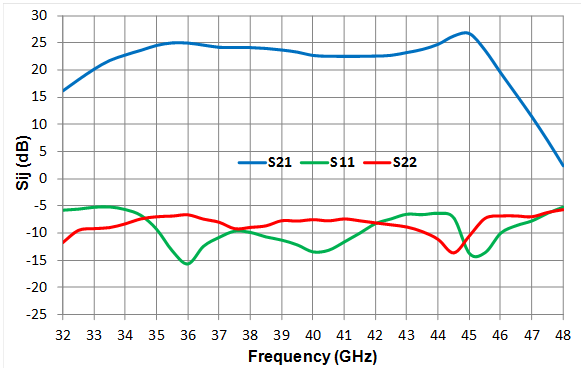

Gain (dB)
22

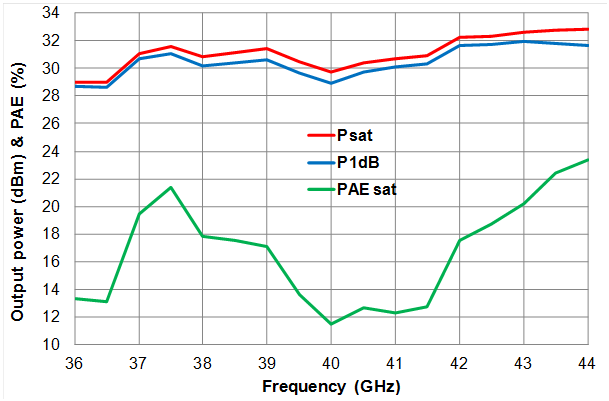

Sat. Output Power (dBm)
31
Bias (mA)
800
Bias (V)
6
IP3 (dBm)
38.5

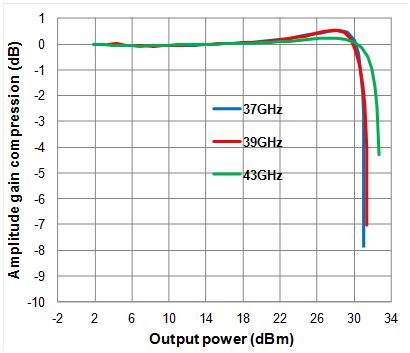

P-1dB OUT (dBm)
30
RF Bandwidth (GHz) Max
43.5
RF Bandwidth (GHz) Min
36
Market
36-44GHz Chipset

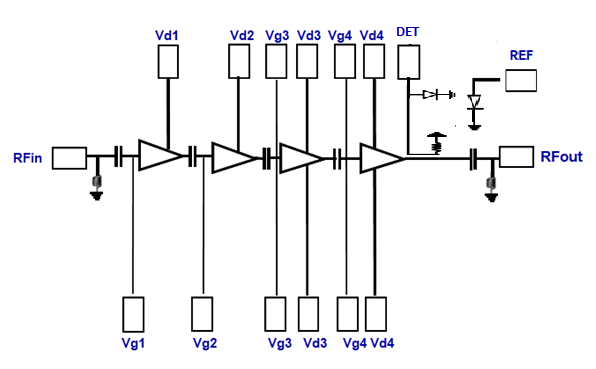

The CHA5659-98F is a four stage monolithic GaAs High Power Amplifier producing 1.3 Watt output power. It is highly linear, with possible gain control and integrates a power detector. ESD protections are included.
It is designed for Point To Point Radio or K‑band SatCom applications.
The CHA5659-98F is recommended with the CHA3398-98F as a driver.
The circuit is manufactured with a pHEMT process, 0.15µm gate length.
