CHA5266-QDG - 10-16GHz Medium Power Amplifier

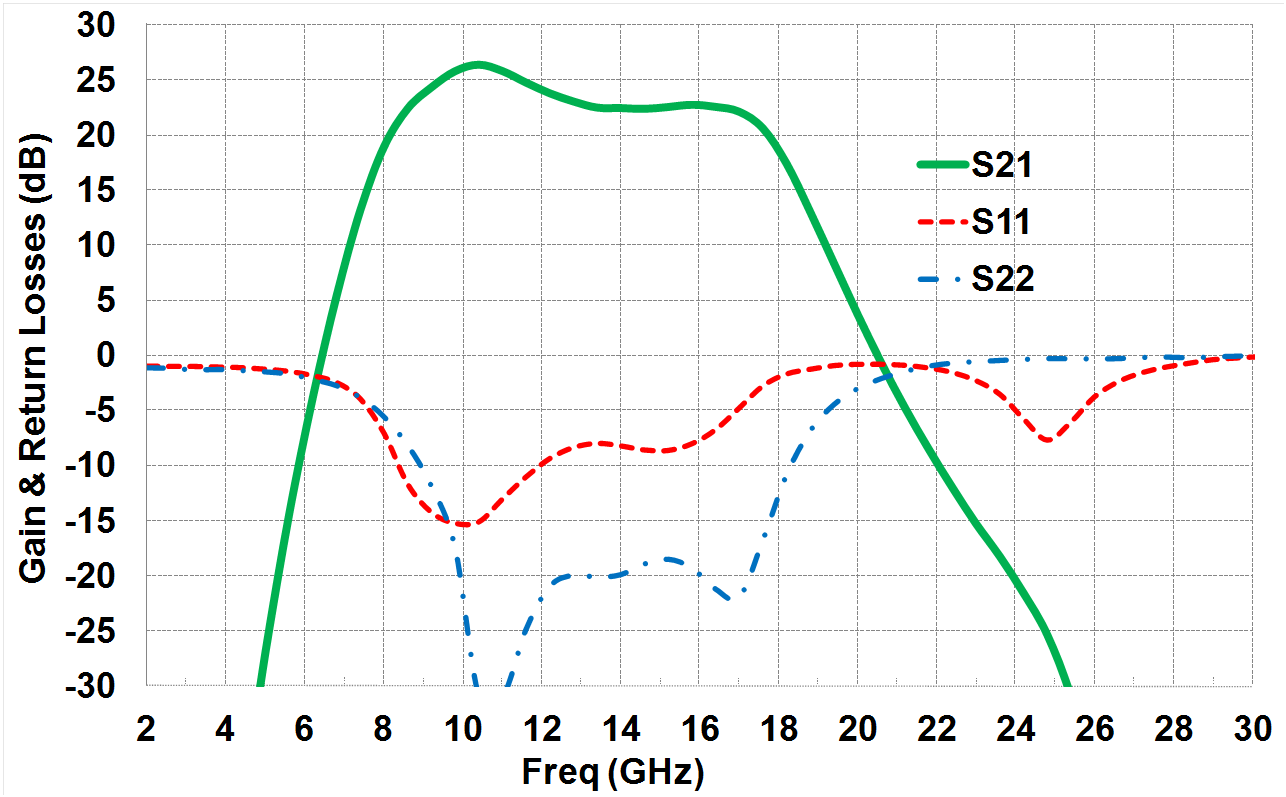

Gain (dB)
23
Sat. Output Power (dBm)
27
Bias (mA)
320
Bias (V)
5
IP3 (dBm)
35
P-1dB OUT (dBm)
25.5
RF Bandwidth (GHz) Max
16
RF Bandwidth (GHz) Min
10
Market
13-18GHz & VSAT Ku Chipset
The CHA5266-QDG is a three stage monolithic GaAs Medium Power Amplifier.
It is designed for a wide range of applications, from professional to commercial communication systems.
The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
It is supplied in RoHS compliant SMD package.
