CHA5005-QDG - 0.9-1.8GHz Medium Power Amplifier

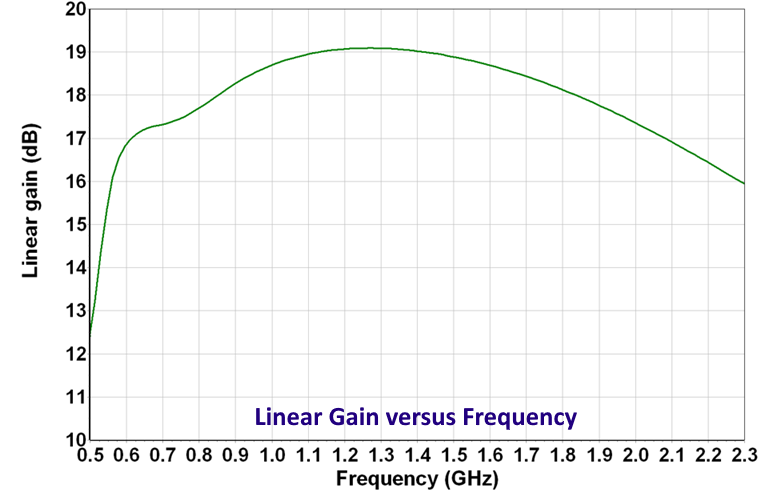

Gain (dB)
18.5
Sat. Output Power (dBm)
-
Bias (mA)
120
Bias (V)
7.5
IP3 (dBm)
-
P-1dB OUT (dBm)
26.5
RF Bandwidth (GHz) Max
1.8
RF Bandwidth (GHz) Min
0.9
Market
Aerospace, Defense and Instrumentation

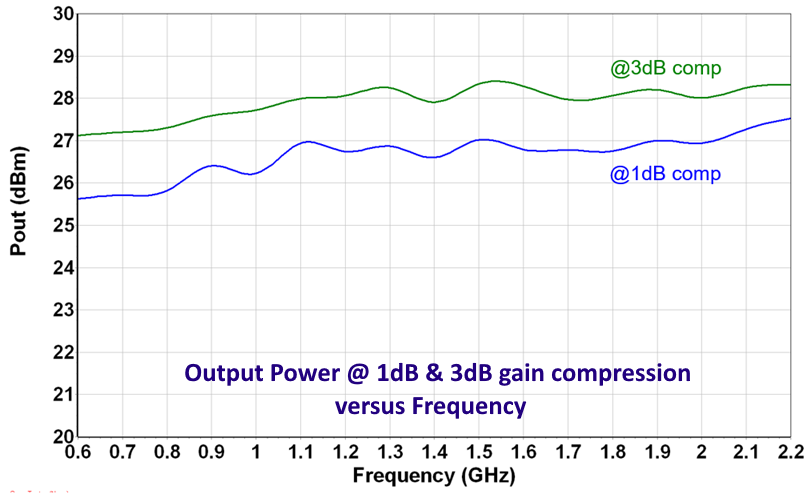

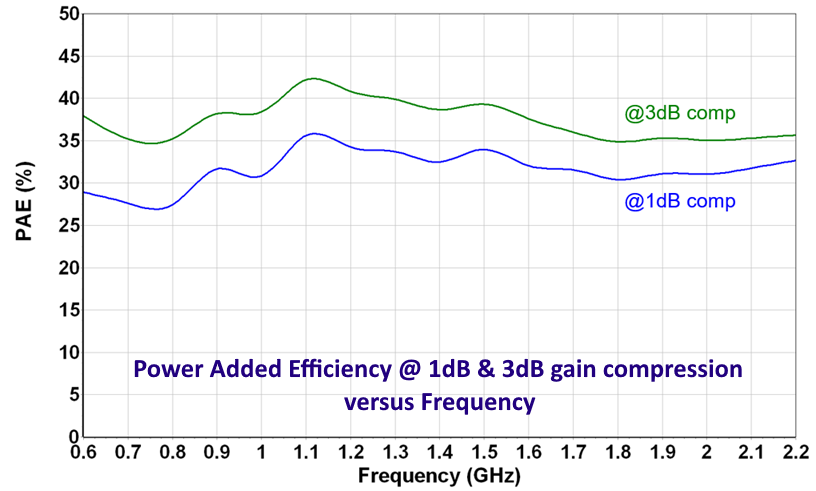

The CHA5005-QDG is a monolithic one-stage driver amplifier that produces 26.5dBm output power associated to 33% power added efficiency at 1dB gain compression.
It is designed for a wide range of applications, from military to commercial communication systems.
The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
It is supplied in RoHS compliant SMD package.
