CHA4395-QDG - 21-27GHz Medium Power Amplifier
Gain (dB)
22
Sat. Output Power (dBm)
-
Bias (mA)
230
Bias (V)
4
IP3 (dBm)
-
P-1dB OUT (dBm)
21
RF Bandwidth (GHz) Max
27
RF Bandwidth (GHz) Min
21
Market
23-26GHz Chipset

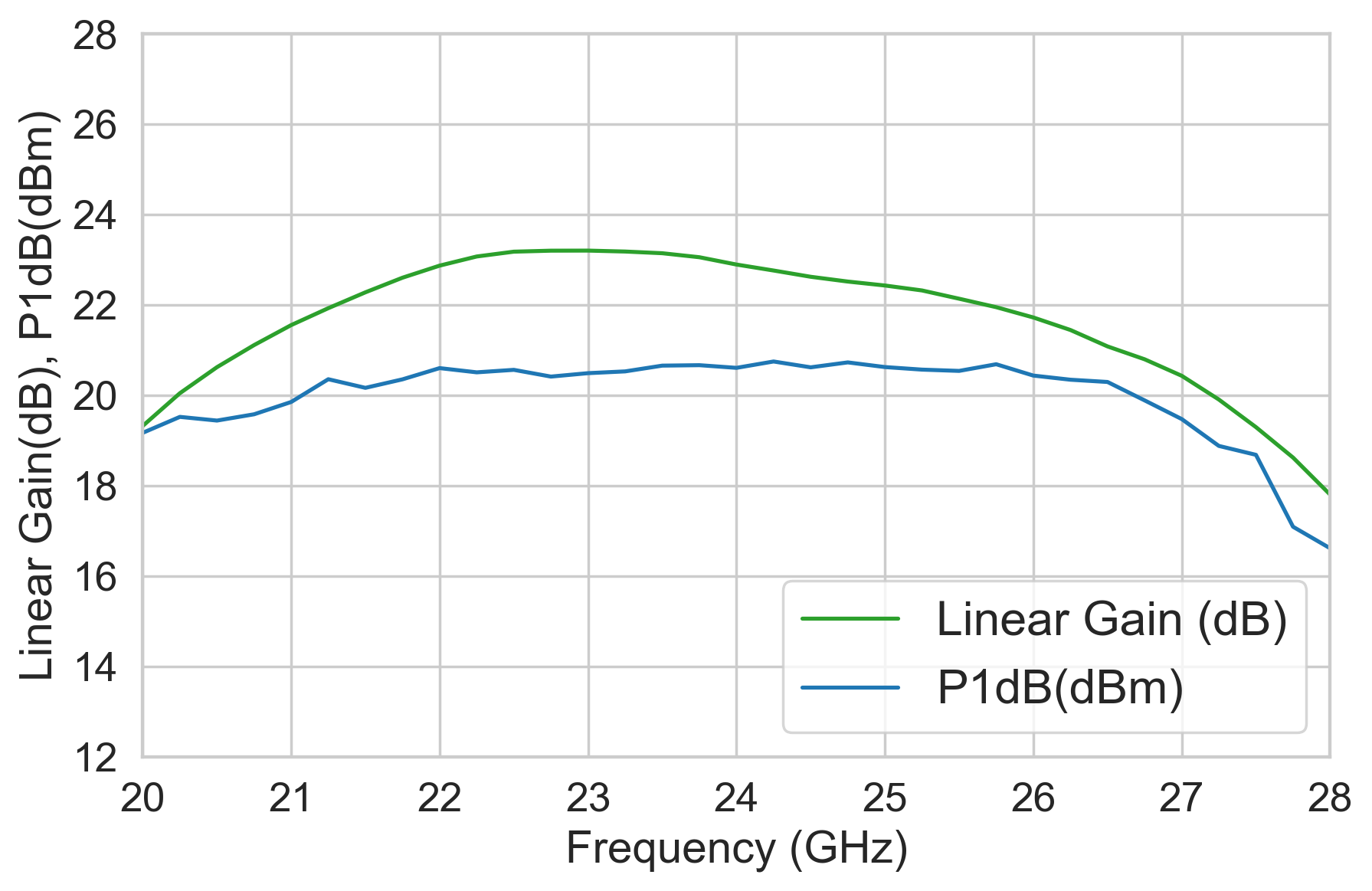

The CHA4395-QDG is a three-stage GaAs Medium Power Amplifier operating between 21GHz and 27GHz. This amplifier provides 23dBm maximum output power with 15% Power Added Efficiency and 21dBm Output Power at 1dB gain compression. The circuit exhibits a typical small signal gain of 22dB.
This Medium Power Amplifier is well suited for a wide range of Telecom applications including RADAR and Space Communications.
It is available in QFN plastic package. Input and output are 50Ω matched and integrate ESD RF protections.Our latest Products
