CHA4350-QDG - 5.5-11.7GHz Medium Power Amplifier

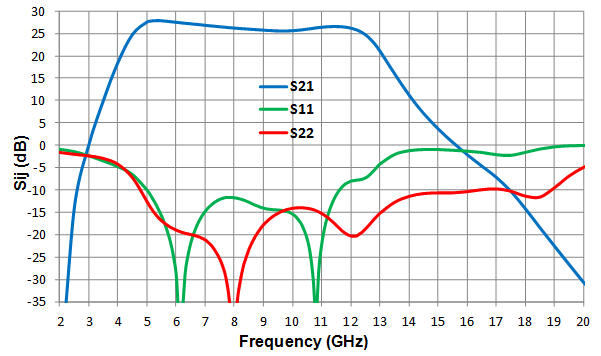

Gain (dB)
26
Gain Control Range (dB)
15
Gain Flatness (+/-dB)
-
Bias (mA)
125
Bias (V)
5.5
Noise Figure (dB)
5.5

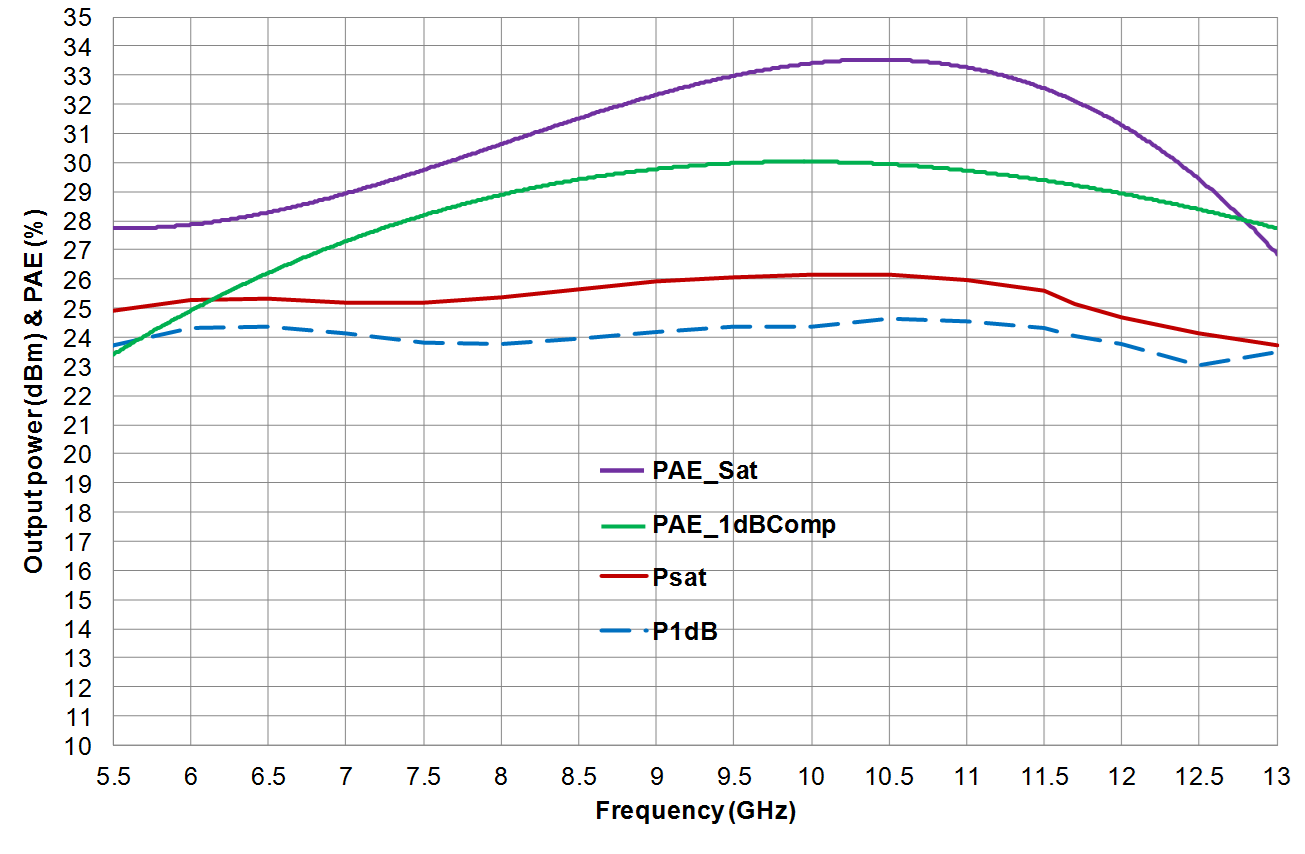

P-1dB OUT (dBm)
24
RF Bandwidth (GHz) Max
11.7
RF Bandwidth (GHz) Min
5.7
Market
6-8.5GHz Chipset
The CHA4350-QDG is a three stage monolithic medium power amplifier circuit.
It is well suited for a wide range of applications from defense to commercial communication systems.
This circuit is highly linear. Its versatile biasing condition helps to tune the performances. In addition, the circuit is fully protected against ESD.
This product is manufactured with a pHEMT process, 0.15µm gate length.
It is supplied in RoHS compliant SMD package.
