New
CHA4262-QDG -
Gain (dB)
26
Sat. Output Power (dBm)
23
Bias (mA)
130
Bias (V)
2.5
IP3 (dBm)
30
P-1dB OUT (dBm)
20
RF Bandwidth (GHz) Max
22
RF Bandwidth (GHz) Min
17
Market
Aerospace, Defense and Instrumentation

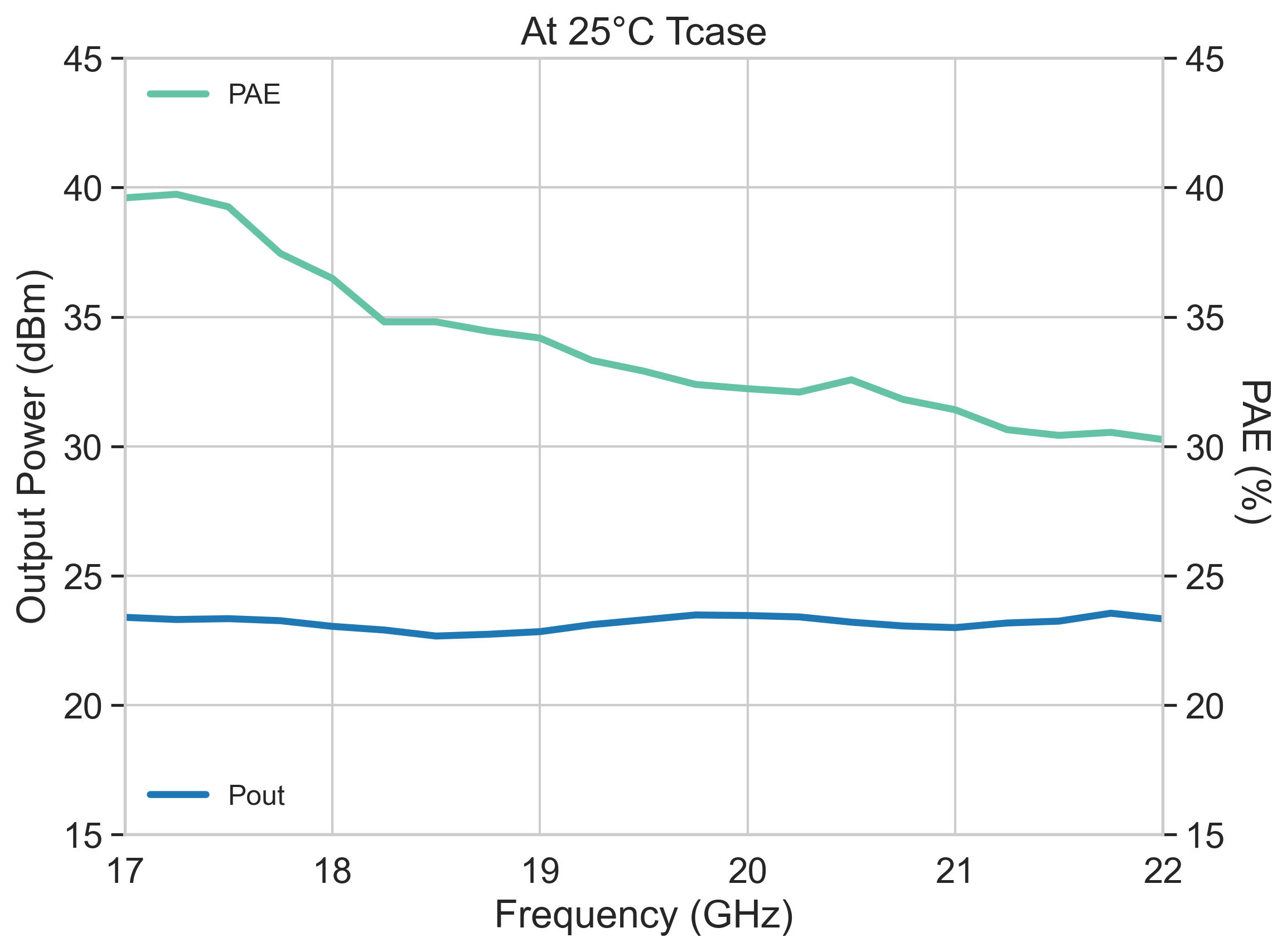

The CHA4262-QDG is a three-stage GaAs Medium Power Amplifier operating between 17GHz and 22GHz. This amplifier provides 23dBm saturated output power with 37% Power Added Efficiency and 20dBm Output Power at 1dB gain compression. The circuit exhibits a typical small signal gain of 26dB and 30dBm Output Third-Order Intercept Point.
This Medium Power Amplifier is dedicated to Space applications and it is also ideal for a wide range of microwave systems.
This new product is matched to 50Ω and supplied on RoHS 4 mm x 4 mm QFN plastic package.
