CHA4107-QDG - C-Band Medium Power Amplifier
Gain (dB)
22.5
Sat. Output Power (dBm)
26
Bias (mA)
115
Bias (V)
8
IP3 (dBm)
-
P-1dB OUT (dBm)
25.5
RF Bandwidth (GHz) Max
6.5
RF Bandwidth (GHz) Min
4.5
Market
Aerospace, Defense and Instrumentation
The CHA4107-QDG is a monolithic two-stage GaAs medium power amplifier designed for C Band applications.

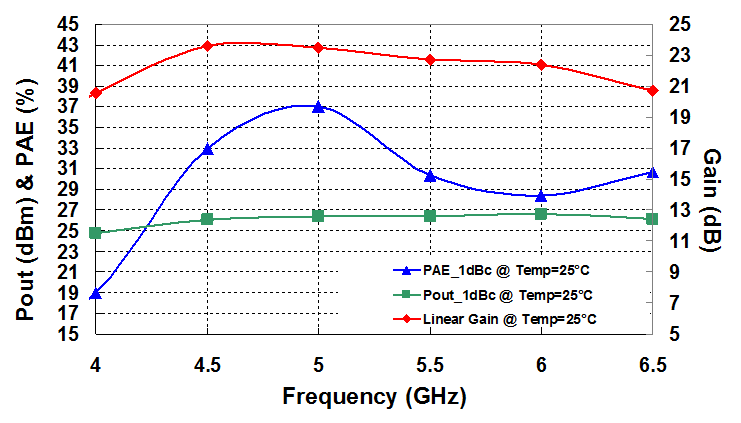

The MPA provides typically 25.5dBm output power associated to 30% power added efficiency at 1dB gain compression.
It is supplied in RoHS compliant SMD package.
