CHA3689-99F - 12.5-30GHz LNA

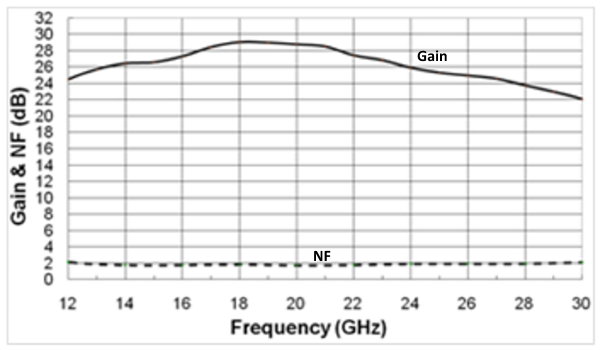

Gain (dB)
26
Gain Flatness (+/-dB)
2
Bias (mA)
90
Bias (V)
4
Noise Figure (dB)
2
P-1dB OUT (dBm)
14
RF Bandwidth (GHz) Max
30
RF Bandwidth (GHz) Min
12.5
Market
28-32GHz & VSAT Ka Chipset
The CHA3689-99F is a three-stage self biased wide band monolithic Low Noise Amplifier.
It is designed for a wide range of applications, from military to commercial communication systems.
The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
It is available in chip form.
