CHA3409-98F - 25-45GHz Driver
Gain (dB)
23
Sat. Output Power (dBm)
20
Bias (mA)
100
Bias (V)
4
IP3 (dBm)
-
P-1dB OUT (dBm)
19
RF Bandwidth (GHz) Max
45
RF Bandwidth (GHz) Min
25
Market
28-32GHz & VSAT Ka Chipset

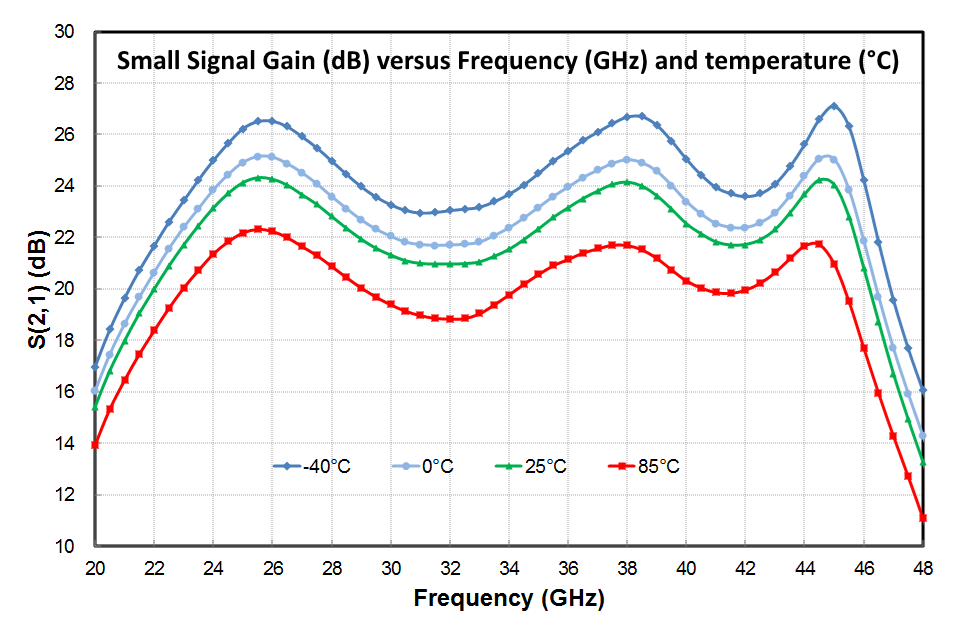

The CHA3409-98F is a 3 stage monolithic Medium Power Amplifier, which produces 23dB linear gain and 19dBm output power. It includes a self-biasing on the first stage, which reduces the impact of temperature and technology variations.
It is well suited for a wide range of application from military to commercial communication systems and test instrumentation.
This product is manufactured with a pHEMT process, 0.15µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
It is available in bare die with BCB protection layer.
