CHA3398-98F - 36-43.5GHz Medium Power Amplifier
Gain (dB)
20

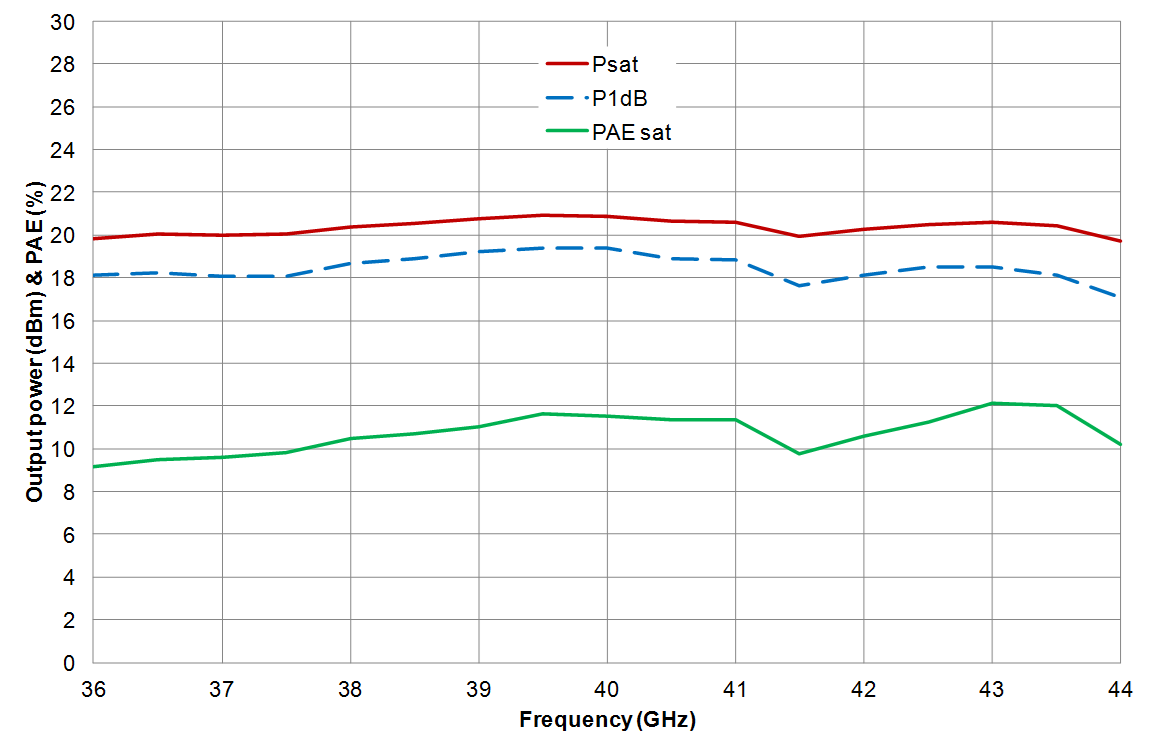

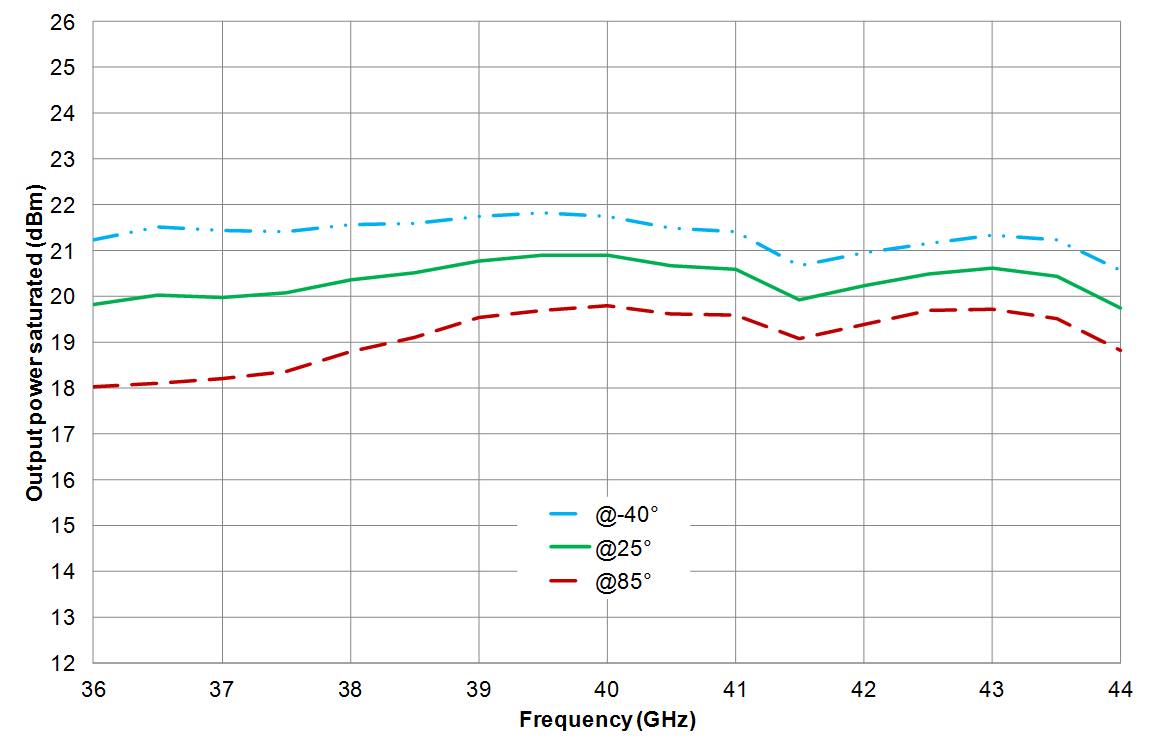

Sat. Output Power (dBm)
19
Bias (mA)
200
Bias (V)
4
IP3 (dBm)
29
P-1dB OUT (dBm)
18
RF Bandwidth (GHz) Max
43.5
RF Bandwidth (GHz) Min
36
The CHA3398-98F is a 4 stage monolithic Medium Power Amplifier, which produces 24dB gain for 20dBm output power.
It is well suited for a wide range of application from military to commercial communication systems.

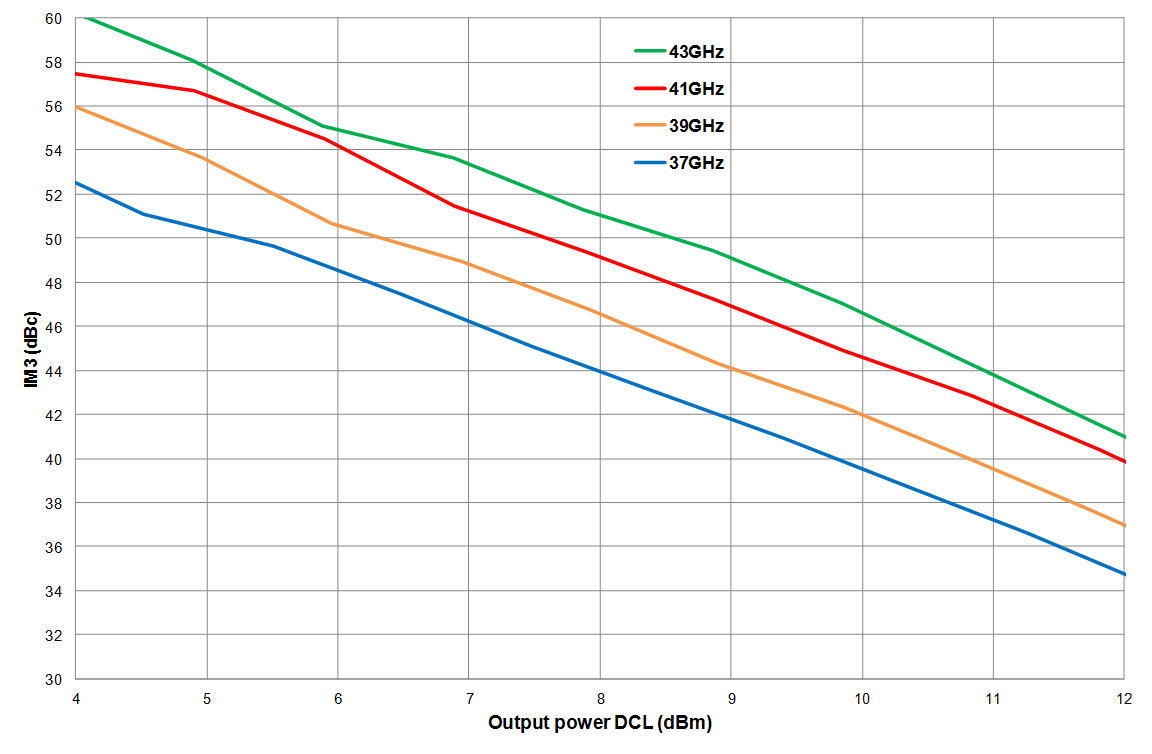

This circuit is highly linear and compatible with the last generation of Digital Pre-Distortion. Its versatile biasing condition helps to tune the performances. In addition, the circuit is fully protected against ESD.
This product is manufactured with a pHEMT process, 0.15µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
It is available in bare die.
