CHA3080-98F - 71-76GHz Medium Power Amplifier
Gain (dB)
16
Sat. Output Power (dBm)
21
Bias (mA)
280
Bias (V)
3.5
IP3 (dBm)
-
P-1dB OUT (dBm)
19
RF Bandwidth (GHz) Max
76
RF Bandwidth (GHz) Min
71
Market
46GHz, V-Band & E-Band

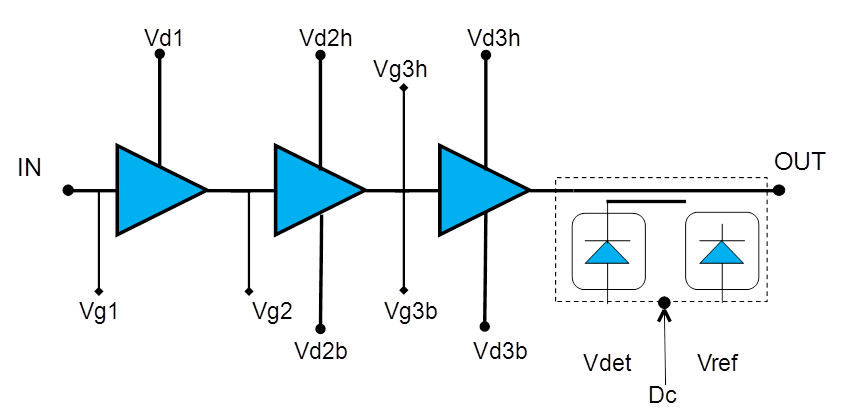

The CHA3080-98F is a three-stage monolithic Medium Power Amplifier. This circuit includes a power detector which integrates a directional coupler, a detection diode and a reference diode to be used in differential mode.
It is dedicated to E-band telecommunication, particularly well suited for the new generation of high capacity Backhaul.
The circuit is manufactured with a pHEMT process, 0.1µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
It is available in chip form with BCB layer protection.
