CHA2595-98F - 27.5-43.5GHz LNA

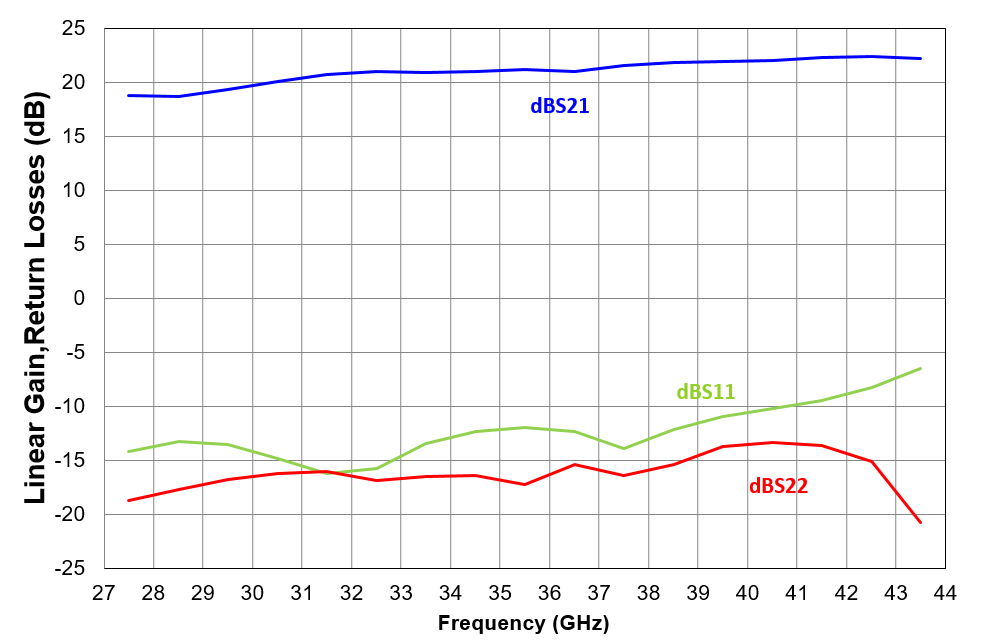

Gain (dB)
20
Gain Control Range (dB)
-
Gain Flatness (+/-dB)
-
Bias (mA)
61
Bias (V)
3.3

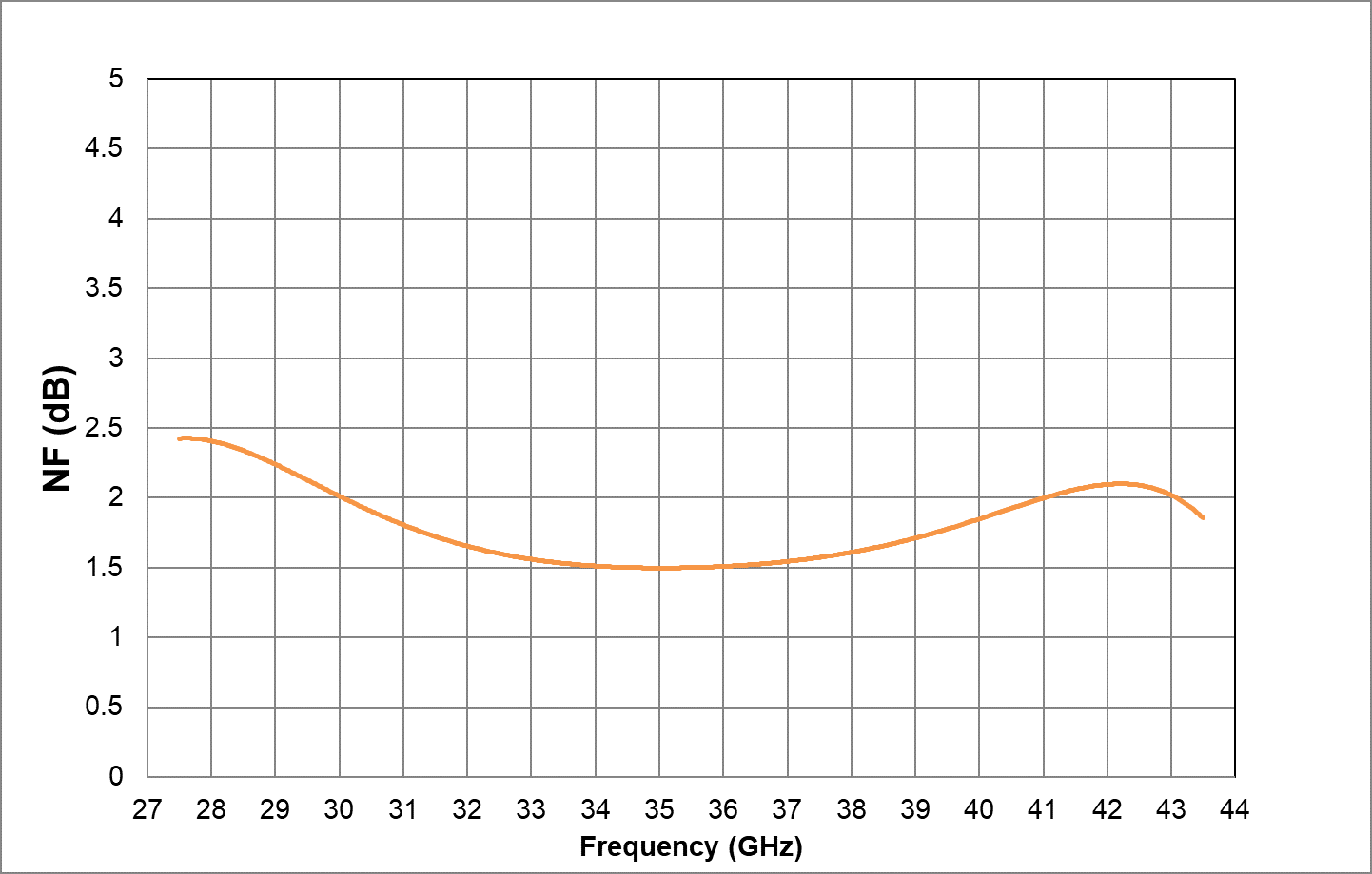

Noise Figure (dB)
2

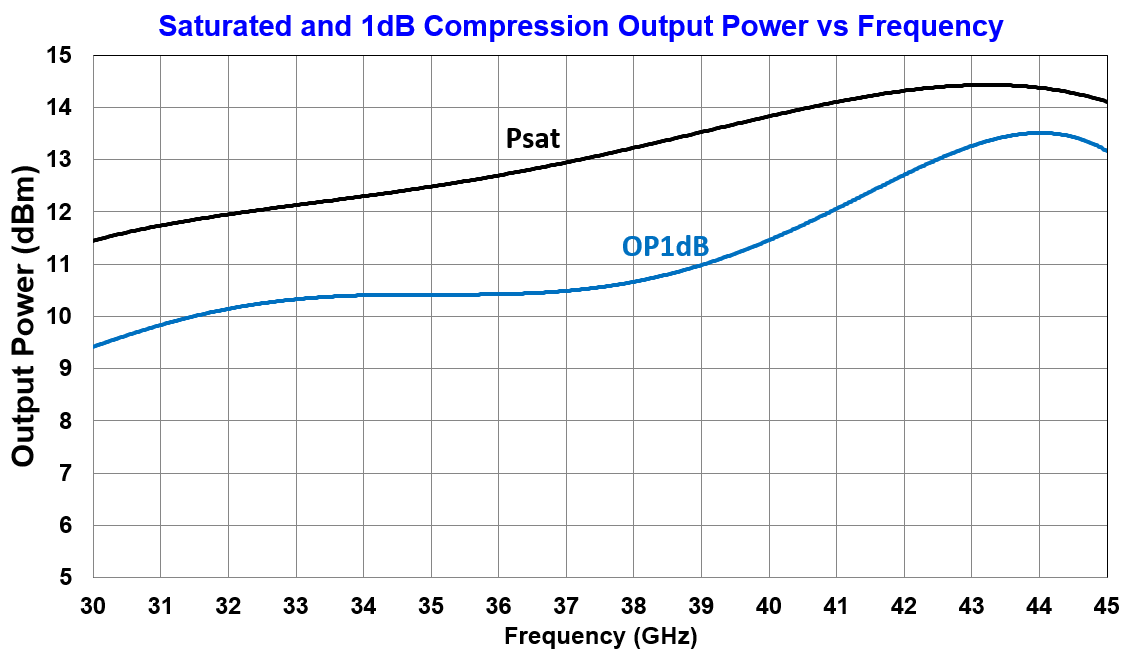

P-1dB OUT (dBm)
11
RF Bandwidth (GHz) Max
43.5
RF Bandwidth (GHz) Min
27.5
Market
28-32GHz & VSAT Ka Chipset
This circuit is a wide band monolithic Low Noise Amplifier with state of the art wide band, low noise and adjustable gain performance.
It is designed for a wide range of applications, from military to commercial communication and test instrumentation systems.
It is manufactured with a successfully space evaluated pHEMT process, 100nm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
ESD protection on DC/RF is included in the product.
