CHA2394-99F - 36-40GHz Very Low Noise High Gain Amplifier

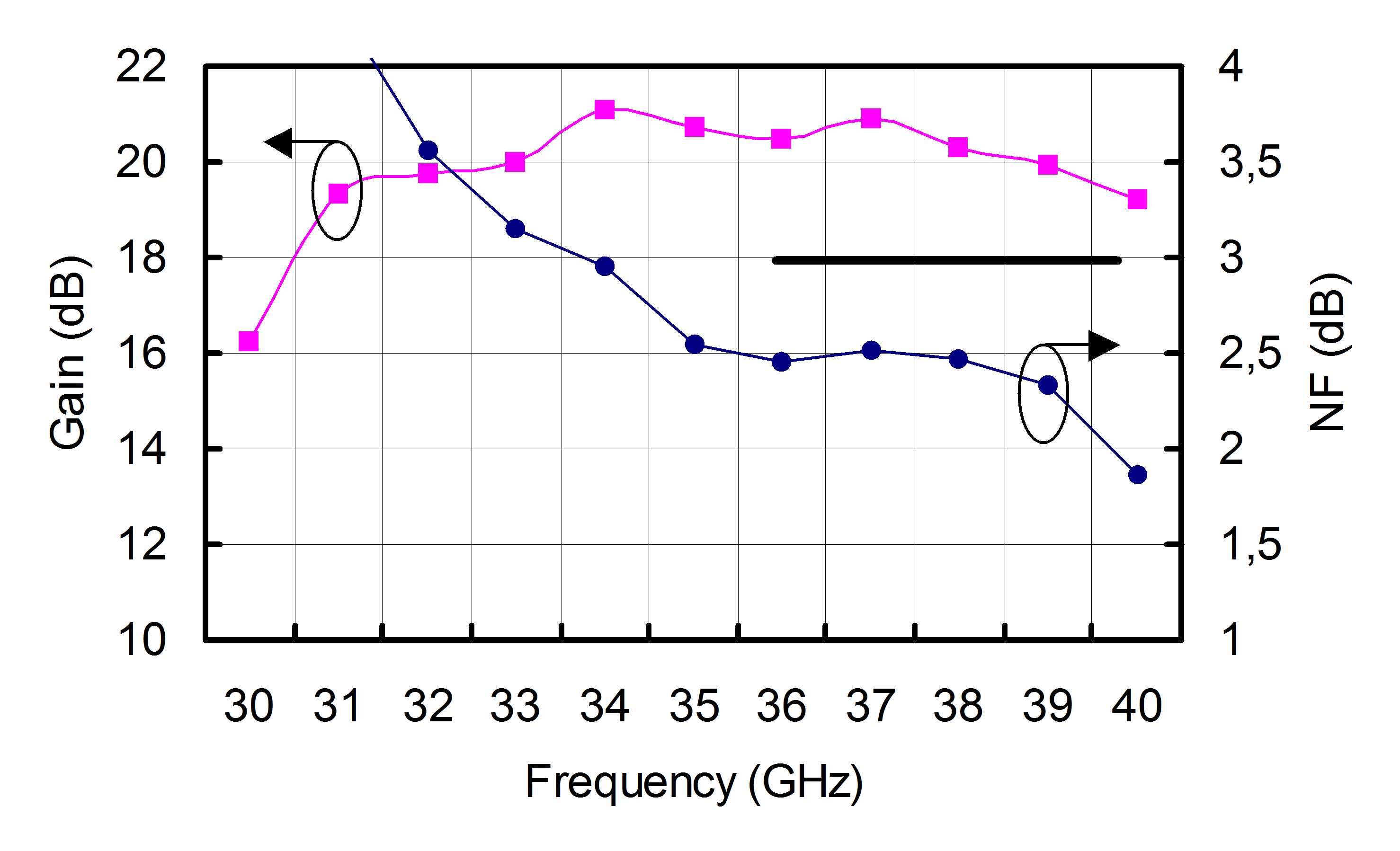

Gain (dB)
21
Gain Flatness (+/-dB)
1.5
Bias (mA)
60
Bias (V)
3.5
Noise Figure (dB)
3
P-1dB OUT (dBm)
8
RF Bandwidth (GHz) Max
40
RF Bandwidth (GHz) Min
36
Market
36-44GHz Chipset
The CHA2394-99F is a three-stage monolithic Low Noise Amplifier.
It is designed for a wide range of applications, from military to commercial communication systems.
The circuit is manufactured with a pHEMT process 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.
It is available in chip form.
