CHA2368-98F - 50-71GHz LNA
Gain (dB)
21
Gain Control Range (dB)
-
Gain Flatness (+/-dB)
-
Bias (mA)
75
Bias (V)
3.3
Noise Figure (dB)
3.5

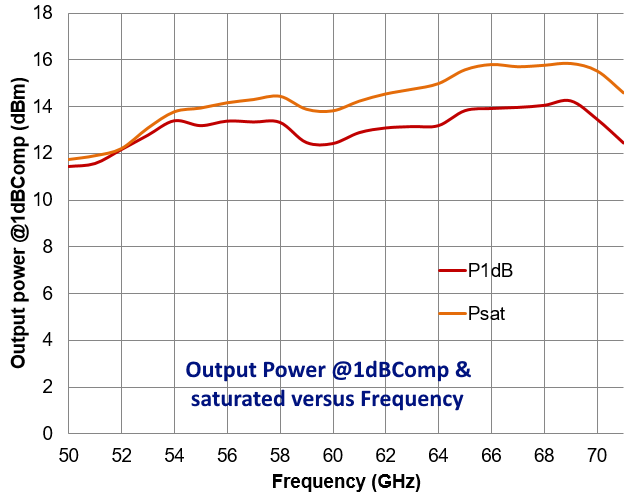

P-1dB OUT (dBm)
12
RF Bandwidth (GHz) Max
71
RF Bandwidth (GHz) Min
50
Market
46GHz, V-Band & E-Band

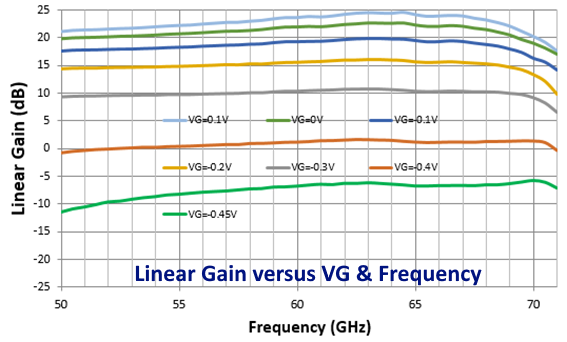

The CHA2368-98F is a four stage monolithic Low Noise Amplifier, which exhibits 21dB linear gain and 3.5dB Noise Figure in the frequency band 50-71GHz. It includes ESD protections on each RF access and DC pads.
This amplifier is designed for a wide range of applications, from Commercial to Space communication systems.
It is manufactured with a pHEMT process, 0.1µm gate length, via holes through the substrate, air bridges and electron beam gate lithography and is available in bare die with BCB layer protection.
